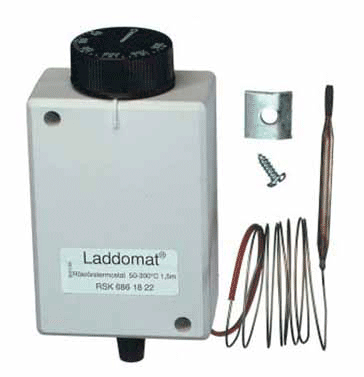

Laddomat Flue Thermostat

Function: Used to start and stop the charging pump between boiler and storage tank.

The flue thermostatstarts the pump as soon as the temperature of the smoke pipe rises to a predetermined level, after firing starts.

In wood-fired boilers with self-circulation valves, it prevents cold water cooling the bottom of the boiler when firing starts. The boiler reaches operating temperature more quickly. A suitable setting is approx. 50-1200C. When the log fire goes out, the pump stops as soon as the flue cools down.

For full details and a brochure click here

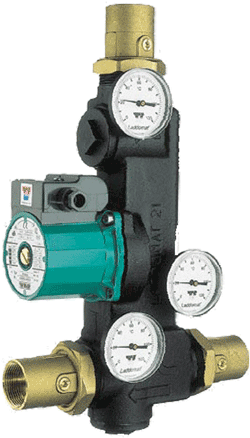

Laddomat 21 Flue Thermostat, Laddomat Flue Installation

A thin boundary layer* in the storage tank is necessary for an effective, easy-to
operate solid fuel boiler system.

It is vitally important for the boundary layer that the installation of the boiler and storage tanks is correct.

Laddomat 21 is a complete unit and is simple to install.

* The Boundary Layer is a thin border between the hot water on top and the colder, denser water underneath. Laddomat 21 enables the boiler to attain the perfect working temperature in a very short space of time.

Laddomat 21 charges the storage tank by means of a slow flow of hot water. The vitally important boundary layer between hot and cold water is therefore optimal.



For full details and brochure click here
