Accumulators

Akvaterm logo

Dunster Heat offers the full range of Akvaterm accumulator tanks. Reliable and efficient wood boilers are only as good as the hot water tanks they heat.

Akvaterm has been designing and manufacturing accumulators since 1993. They are the market leader in Finland, supplying very efficient and easy to maintain accumulators that deliver exceptional performance.



For technical information and schematics for all Akvaterm accumulators please click here



The Akvaterm hot water tanks (accumulators) can easily be used with different heating and energy sources, giving you the freedom of choice.

You will find exactly the right hot water tank for your home - from the easy-to-use and easy-to-maintain Akvaterm range - which is why we "teamed" these accumulators up with the Vigas Wood Fuel boilers.

In addition to the standard products - which ranges from 300 to 10,000 litre tanks - Akvaterm can build special tanks tailored to your exact needs.



Akvaterm Akva

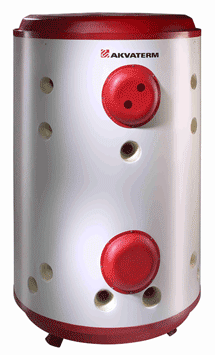

AKVA Standard Accumulator Tank

Capacity 300-10,000 litres. The insulation is 100-mm seamless polyurethane faced with steel sheet. Detachable side panels are also an option. An un-insulated accumulator tank coated with corrosion protection paint can also be delivered. The upper hatch has a standard hot water coil. A domestic hot water pre-heating coil, a solar heating coil, heat collector exchanger and other units can be placed in the lower hatch. Below this are 2” ports for the immersion heaters used during the night. The immersions used during the day are in the centre, and built-in guide pipes ensure the proper layering of heat.



Akvaterm Solar

Akvaterm Solar

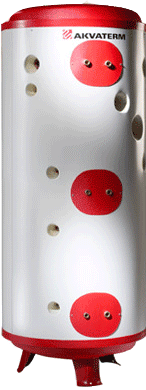

AKVAir Solar - The sunny side of heating. 300-1000 litres, 3bar


AKVAir Solar models are designed to get the most heat out of your solar heating system.

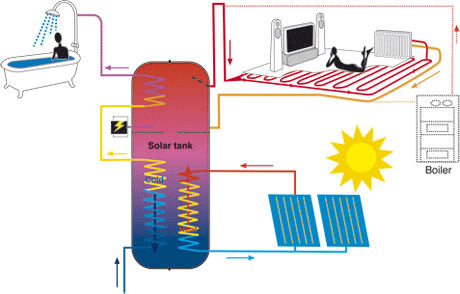

Schematic

Connecting your AKVAir Solar to provide the best efficiency to domestic hot water and central heating from solar energy.



Akvaterm Avanti – Oval

Akvaterm Avanti

AKVANTTI Oval Accumulator Tank

For new construction and renovations. Capacities 1400 litres, 2000 litres and 2400 litres.
The most efficient hot water coil on the market (45 l/min), also available without a domestic hot water coil. The depth is only 810 mm.



Akvaterm Akvasan

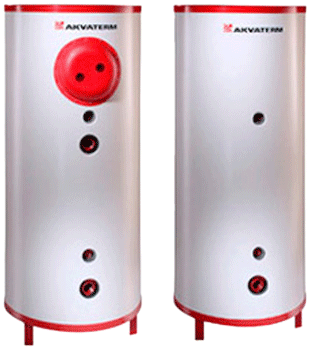

AKVASAN 500-700 litres -to be used in confined spaces

Akvaterm Akvasan

Developed for constrained spaces and narrow openings, this model’s diameter is only 810 mm. The AKVASAN 0.5 series is particularly compact; the advantages of the efficient cylinder format have been retained. The insulation is the same as in the standard accumulator tanks, but its thickness is 50 mm due to the smaller surface area. The EK models are equipped with a domestic hot water coil, as well as daytime and nighttime resistor units.

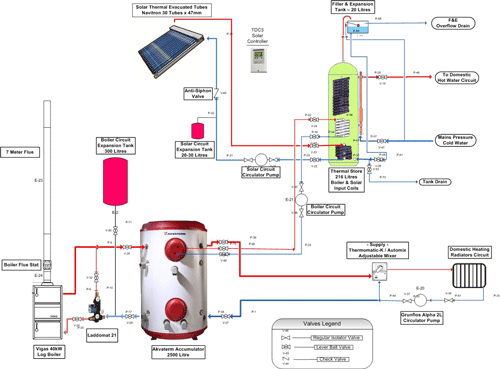

Schematic 1

Energy sources

The use of an Akvaterm accumulator tank is independent of the heating system or energy source. Besides the sun, wood, chips, wind or geothermal heat, the heating source can be traditional electricity, oil or gas heating, or their combinations. If required, energy sources can be modified or the heating system can be supplemented. Akvaterm is part of an entity that facilitates the production of pleasant and balanced heating for living, as well as domestic hot water, with the same system.

The use of an Akvaterm accumulator tank is independent of the heating system or energy source. Besides the sun, wood, chips, wind or geothermal heat, the heating source can be traditional electricity, oil or gas heating, or their combinations.

If required, energy sources can be modified or the heating system can be supplemented. Akvaterm is part of an entity that facilitates the production of pleasant and balanced heating for living, as well as domestic hot water, with the same system.

Icons




AKVA standard Accumulator Tank:

MODEL
DIAMETER (mm)
HEIGHT (mm)
WEIGHT (kg)
RESISTOR UNITS
AKVA 300 EK 710 2050 130 2
AKVA 500 EK 800 2050 155 2
AKVA 750 EK 950 2050 200 2
AKVA 1000 EK 1050 2100 230 2
AKVA 1500 EK 1250 2150 280 3
AKVA 2000 EK 1400 2200 330 4
AKVA 2500 EK 1500 2250 360 4
AKVA 3000 EK 1600 2300 400 4
AKVA 4000 EK 1800 2350 480 6
AKVA 5000 EK 2000 2500 600 6



EK = Isolated and with one coil
Diameter 200mm smaller without insulation





AKVASAN Renovation Accumulator Tank

MODEL
DIAMETER (mm)
HEIGHT (mm)
WEIGHT (mm)
RESISTOR UNITS
AKVASAN 0,5 EK 810 1550 130 2
AKVASAN 0,5 E 810 1550 120 1
AKVASAN 0,7 EK 810 2050 160 2
AKVASAN 0,7 E 810 2050 150 1



EK = Isolated and with one coil E = Isolated




AKVANTTI oval accumulator tank

MODEL
HEIGHT/WIDTH (mm)
DEPTH (mm)
WEIGHT (kg)
RESISTOR UNITS
AKVANTTI 1400 EK 1660/1630 810 420 3
AKVANTTI 1400E 1660/1630 810 410 3
AKVANTTI 2000 EK 1840/2060 810 500 4
AKVANTTI 2000 E 1840/2060 810 490 4
AKVANTTI 2400 EK 2160/2060 810 560 4
AKVANTTI 2400 E 2160/2060 810 550 4


Accumulator Tanks for various needs
Made suitable for the various uses. The structural pressure is usually 3 or 4 bar. The capacity, hatches, units, hot water coils and other units are manufactured according to the customers requirements.



Cold Storage Tanks and Pressure Vessels
Cold Storage tanks, such as those made with stainless steel, are tailored for our customers according to the functional application. Storage tanks and pressure vessels can be used as storage units for various raw materials, as cold storages, equalising tanks, in recovery systems, and for other purposes. All necessary additional accessories, such as extra hatches, units, coils, mounting brackets e.t.c. are included when ordering the aforementioned tanks. The maximum diameter is 2400mm.



Electrical accessories
The accumulator's electric resistor units can be factory installed. The resistor material is high-quality Incology 825. The night electricity accumulator's accessories include 2-3 electric resistors for night time use as well as daytime resistors. The delivery also includes thermostats for night time and daytime use, manufactured to comply with the Finnish Electricity Association's drawing no. SLY 3.2, as well as a single overheating protector. If necessary the accumulator tank can be supplied with its own control panel. The accumulators' electrification can also be carried out according to the customer's preferences.



Hot water coil
Besides the standard coil, AKVA hot water coils are manufactured as ø 22 mm finned copper tubes for flows of 20-200 l/min (capacity 50-500 kW) according to the customer's dimensions. Structural pressure 10 bar.

MODEL
CAPACITY kW
DIAMETER (mm)
LENGTH (mm)
UNIT R"male
FLOW l/min
AKVA LK 35 90 160 750 ¾ 35
AKVA LK 45 120 160 950 ¾ 45
AKVA LK 60 150 160 1250 1 60
AKVA LK 80 205 250 900 1 ¼ 80
AKVA LK 100 255 300 1000 1 ½ 100
AKVA LK 120 310 300 1100 2 120



AKVAir Solar

The sunny side of heating.

Ensure your heat accumulation with tested and reliable Akvaterm accumulator tanks. Lower your carbon dioxide footprint by improved efficiency with solar, biomass or any other heating. AKVAir Solar models are designed to get the most heat out of your solar heating system.

Akvaterm is a European leader at accumulator tanks and special vessels. We have decades of experience in HEAT and COLD, which combined with our high quality and production capabilities provides overwhelming efficiency, continuous warmth and comfort to your living. In addition to our standard accumulator tanks optimized to your heating, we provide vessels for your different requirements of heating and cooling according to your specifications or eg. room measurements. We will gladly help you to define the build-up or specify equipment needed.

MODEL
DIAMETER
(mm)
HEIGHT
(mm)
COILS
INSULATION (Seamless Urethane)
AKVAir 300 Solar 650 2050 LK + Solar Coil 70mm
AKVAir 500 Solar 800 2050 2xLK + Solar Coil 100mm
AKVAir 750 Solar 950 2100 2xLK + Solar Coil 100mm
AKVAir 1000 Solar 1050 2100 2xLK + Solar Coil 100mm
